4K/3G-SDI with Party-line Intercom/audio,Remote,Tally,Return video to camera fiber system

Product Categories

ShenZhen Beyond Optoelectronoic Technology Co.,Ltd

Contact Now

Name: 4K3GSDI with Partyline IntercomaudioRemoteTallyReturn video to camera fiber system
Brand: Beyond
Price: 1 USD

Place of Origin : ShenZhen,China

Brand Name : Beyond

Certification : CE,FCC

Model Number : BY-EFP4106VM-1U

MOQ : 1 pair

Price : Negotiable

Packaging Details : standard trade carton

Delivery Time : 7-20 working days

Payment Terms : T/T,Paypal,100% payment before production

Supply Ability : 1000 pairs per month

Contact Now

EFP To Fiber Convertor includes a Camera Optic Adaptor and a Optic Base Station. The

system transports a 3G/HD-SDI signal from the camera to the Base Station and a return

video (3G/HD-SDI or CVBS), Remote control data, genlock, intercom, tally, audio and

10/100M Ethernet are also provided. The system puts all of the signals needed for

multi-camera 3G/HD-SDI production onto a SM / MM tactical or SMPTE hybrid fiber cable,

insuring robust, trouble-free connectivity on any studio or remote production.

Features

 Handle all Pathological patterns

 Automatic cable equalization to ensure signal integrity

 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to

 SMPTE 424M, SMPTE 292M and SMPTE 259M

 10+Km on single mode fiber or 300m on multimode fiber transmission

 Mic inputs with mute and pre-amps

 RS422 /RS232/RS485 remote control

 Tally/GPI output +12V or dry Contact Closure optional

 V-mount or A-mount battery optional

Summary EFP To Fiber Optic Customization examples

4K/3G-SDI with Party-line Intercom/audio,Remote,Tally,Return video to camera fiber system

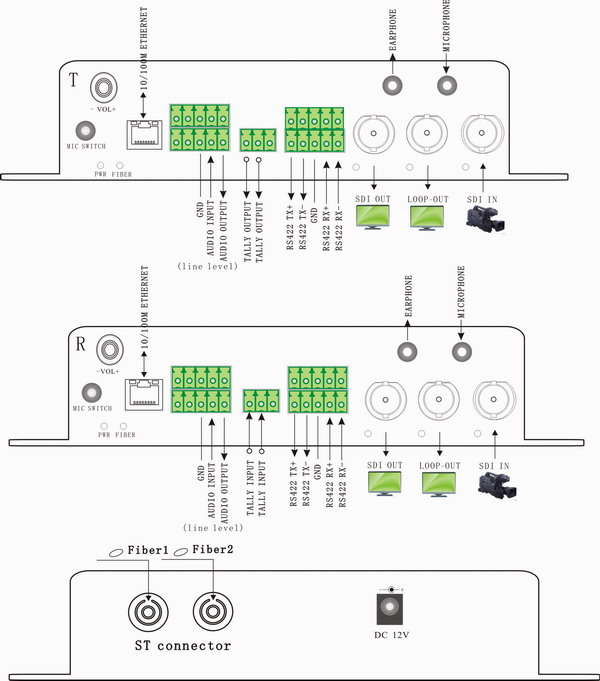

Connection diagram:

4K/3G-SDI with Party-line Intercom/audio,Remote,Tally,Return video to camera fiber system

4K SDI To Fiber Converter

4K/3G-SDI with Party-line Intercom/audio,Remote,Tally,Return video to camera fiber system

4K/3G-SDI with Party-line Intercom/audio,Remote,Tally,Return video to camera fiber system Images
